Fibre help - How to set up a PPPoE dialler in Vista/Windows 7

Fibre help - How to set up a PPPoE dialler in Vista/Windows 7

Fibre help - How to set up a PPPoE dialler in Vista/Windows 7

Setting up a PPPoE Dialler for windows Vista & Windows 7

To do a speed test via your modem you will need to connect directly to the modem and set up a PPPoE dialler from your computer. This will enable you to test the speed that the modem is achieving, ruling out the router and other equipment between your computer and the modem as a cause.
Step 1. Disconnect your router from the BT modem.
Step 2.  In control panel, select ‘Network and Internet’
Step 3. Select Network and Sharing Center

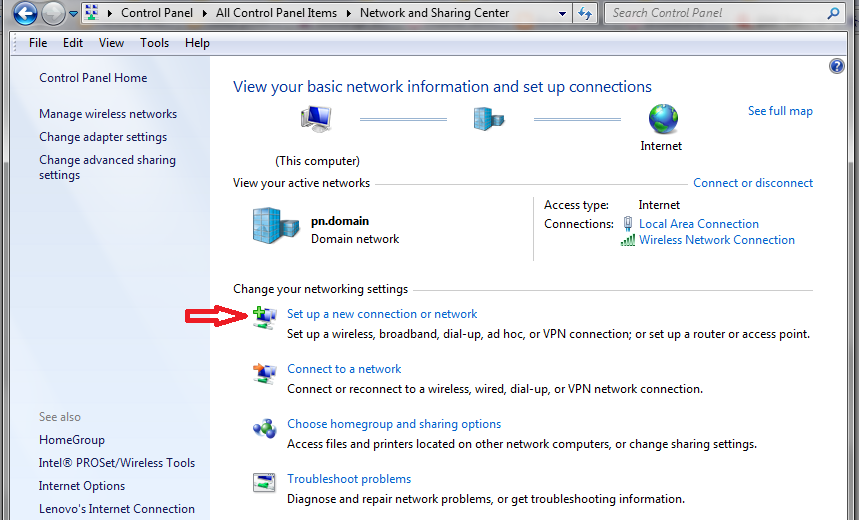

Step 4. Under ‘Change Network Settings,’ select Set up a new connection or network.
PPPoE pic1
Step 5. Highlight ‘Connect to the Internet’ and click Next.
PPPoE pic2
Step 6. Select Broadband PPPoE
PPPoE pic3a
Step 7. Fill in your details and click connect.
PPPoE pic4a1
Step 8. Close. You have set up the dialler.
PPPoE pic5a

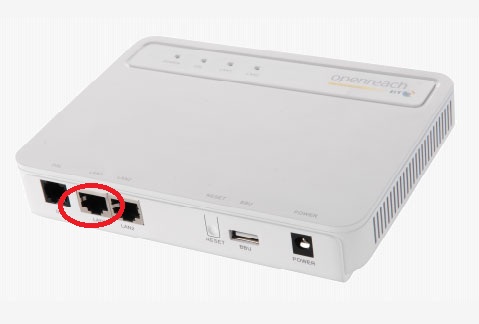

Step 9. Connect your computer with an Ethernet cable directly to the modem into LAN port 1.
fttc_modem
Step 10. When you open your new connection this dialogue box will open. Make sure your username and password are entered and click ‘Connect’. A notification message will appear in your task bar when you are connected.
Dial up win7

Returning to your original setup

When you want to return to your original setup you will have to remove this connection. To do this, simply attach your ethernet cable back into your router and then:
Step 1.  In control panel, select ‘Network and Internet’

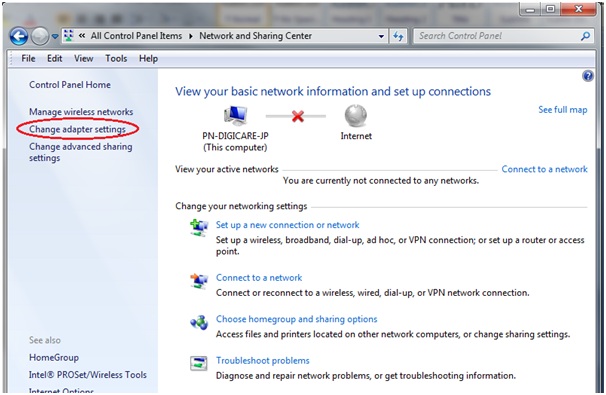

Step 2. Select Network and Sharing Center and click Change adapter settings.
WIN7 1a

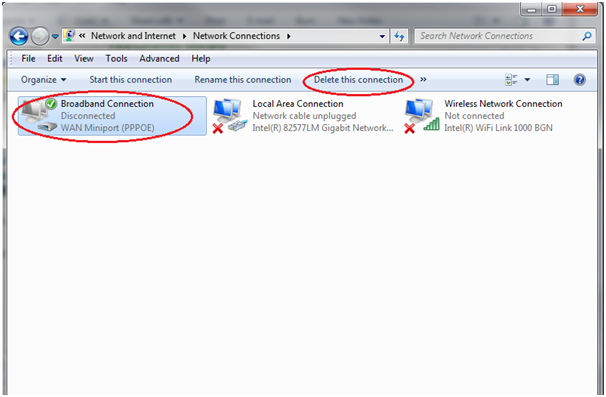

Step 3. Highlight the connection and delete.
WIN7 2a
0 Thanks
4 Comments
7394 Views
4 Comments
Any steps for Mac users?
Superuser
thanks worked for me windows 7 ... but still getting same low speed .. so this suggests the fibre router or Fault with openreach?
St3
Aspiring Champion

Im using windows 10 now and this is not working for me, please add extra info on what to try next Smiley
