TG582n Information and Specifications

TG582n Information and Specifications

‎31-05-2013 10:53 PM

Technicolor 582n - ADSL2+ / ADSL2 / ADSL

ADSL TG582n
 The Technicolor 582n offers easy, secure setup and gives you seamless connection for all your wired and wireless devices throughout your home.

Features at a glance

Integrated ADSL2+ modem
Auto Setup
4 100Mb/s Ethernet ports
Wi-Fi N Technology - 802.11n 2x2 (2.4 GHz), Wi-Fi Protected Setup
Supports multiple devices
Built-in Firewall


ADSL Technical specification

582n Specs table 1
582 specs table 2
 ADSL TG582n back
  1. RJ11 - Internet cable socket
  2. Ethernet ports (RJ45) x 4
  3. Reset Button
  4. Power Button
  5. Power Supply Socket

If you're joining Plusnet, you can order your Technicolor 582n during signup. The router is free of charge, and just £5.99 P&P. If you're already a customer and would like a router, please give us a call on 0800 432 0200.


Technicolor 582n - Fibre

Fibre TG582nFeatures at a glance

Auto Setup
4 100Mb/s Ethernet ports (1 port used for the BT Openreach modem)
Wi-Fi N Technology - 802.11n 2x2 (2.4 GHz), Wi-Fi Protected Setup
USB for content sharing
IPv6 ready
Built-in firewall

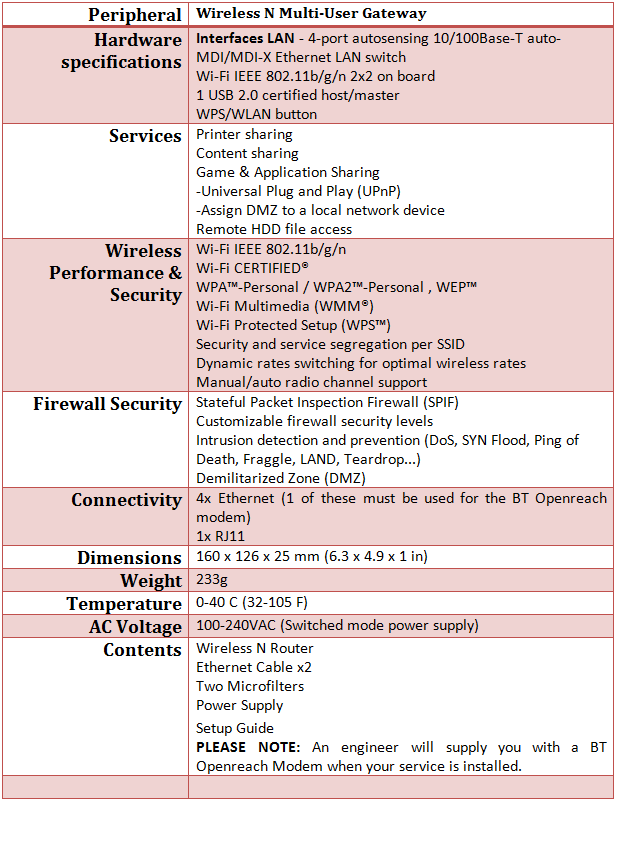

FTTC 582n Specifications

FTTC TG582n back
  1. RJ11 - Internet cable socket (Disabled)
  2. Ethernet ports (RJ45) x3
  3. Reset Button
  4. RJ45 - Socket for BT Openreach Modem
  5. Power Button
  6. Power Supply Socket
  7. USB Port

If you're joining Plusnet, you can order your Technicolor 582n during signup. The router is free of charge, and just £5.99 P&P. If you're already a customer and would like a router, please give us a call on 0800 432 0200.


0 Thanks
Community Gaffer
2 Comments
8868 Views
2 Comments
Anotherone2
Member
Unfortunately this specification doesn't provide details of the DC Power Supply which (if you need a replacement) needs to have an output of 12vDC @1Amp minimum current. Obviously it needs to be for use in the UK typically rated 200/240AC 50Hz. and also have a 13A mains input plug.
In theory, any 12v DC output power unit with those or higher ratings would do.
Typical switch mode PSUs of this type these days are generally rated 100-240V ~50-60Hz, 12V DC 1.0A.
The exact Thomson model that I have is Model: ADS0126A-X120100 Part No: DSL36879820 . I don't know if it's available direct from Thomson.
If buying a replacement on the Internet or anywhere else come to that -
PLEASE BE WARY OF CHEAP FOREIGN IMPORTED POWER UNITS WHICH CAN BE UNSAFE AND CAN BE A FIRE HAZARD.
Anotherone2
Member
To add to the above (can't edit it)- the DC output connector is a standard 2.5x5.5mm connector, they come in 2 lengths, either should do.
Also, always buy power units from a recognised reputable UK supplier.
