Laptop won`t connect via ethernet cable.

FIXED
shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Laptop won`t connect via ethernet cable.

Two Laptop.... both running Linux Mint 21.2 Vera  - Mate edition

Asus Laptop. connects to the internet via Ethernet  and also via WIFI.



Router is upstairs, and connection to it, is via Power Plug adapters. (and new ethernet cables ) Works really good..On the Asus..



Toshiba 12inch Satellite Pro will not connect via the (same) ethernet cable  but will connect via WIFI.

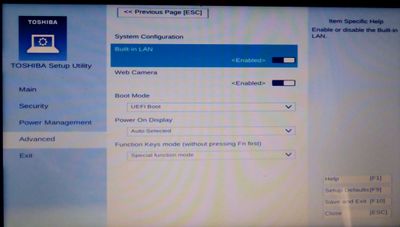

I have been through the BIOS settings to make sure that LAN is enabled ( has always been, as far as I know ! ) .






I have disabled WIFI  but kept Networking enabled




Icon shows "broken" connection and Ethernet Network "disconnected"









I have copied the same information from the Asus to the Toshiba on the "Editing Wired Connections" page.



on the Connection Information page.....



Using the same Interface name for the router

The same Hardware address.

On the IPV4 section  Using the same IP address

Same Broadcast Address

Same subnet mask

Same Default Route

Same Primare DNS







I have changed the Main board, on which the LAN socket is, for two others,

( all have same problem) .



Any suggestions to solve the above problem would be appreciated.

Thank You.









43 REPLIES 43
MisterW
Superuser
Superuser
Posts: 16,238
Thanks: 6,217
Fixes: 447
Registered: ‎30-07-2007

Re: Laptop won`t connect via ethernet cable.

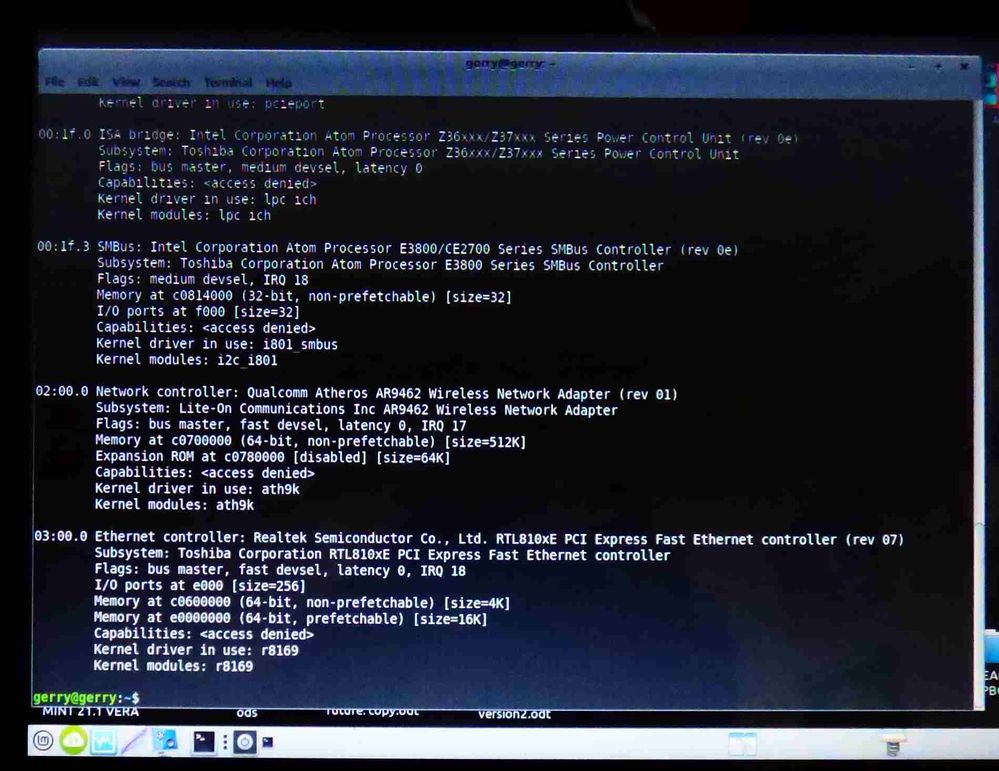

@shutter  run '

sudo lspci -v

from a terminal window

Look for the ethernet controller and see if its loaded a driver

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

@MisterW  Thankyou.

Here is a photo of the Network and Ethernet sections


MisterW
Superuser
Superuser
Posts: 16,238
Thanks: 6,217
Fixes: 447
Registered: ‎30-07-2007

Re: Laptop won`t connect via ethernet cable.

There's conflicting information out there as to whether r8169 is the correct driver for that nic or whether it should be r8101 see https://forums.linuxmint.com/viewtopic.php?t=385186 for example.

I think you need to do some research

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

OK... @MisterW  Thanks for the linky and your time.  Much appreciated.  Sending you a P.M.



shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

@MisterW

After some several attempts to follow the bits and pieces of the linky`s  ( and your advice in PM`s).. I have had some PARTIAL SUCCESS.

The 8101 driver is now installed... and the socket accepts that a cable is inserted, and the driver seems to be searching for something. as where the connection icon is on the (bottom task area) panel, the two plugs have been replaced by a curly swirly icon, indicating that it is searching, Also there is a pop up message saying requesting ethernet address

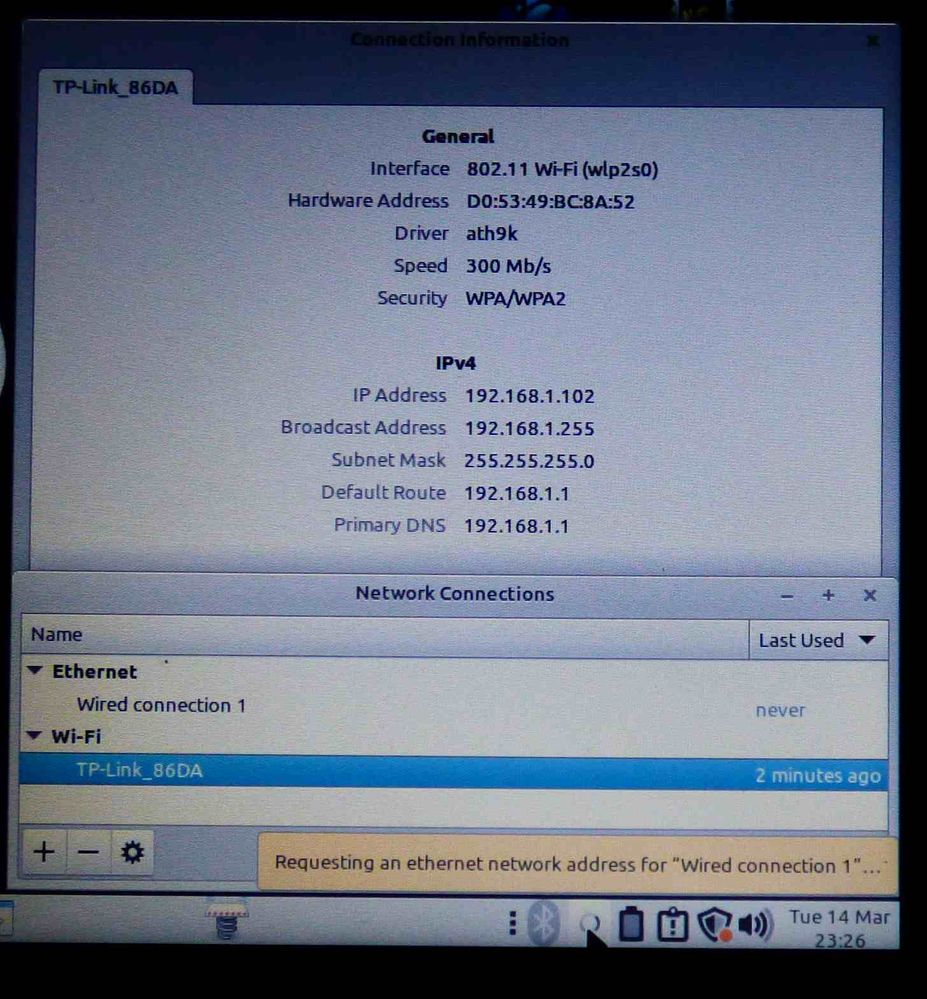

p1120007 requesting ethernet network address.jpg



After about 1 minute or so, it stops for a second only, and shows the two plugs, then disappears and resumes searching. Also, a message appears at the top of the screen saying "Disconnected".

Is there a way to manually enter an ethernet address for "Wired Connection 1".



MisterW
Superuser
Superuser
Posts: 16,238
Thanks: 6,217
Fixes: 447
Registered: ‎30-07-2007

Re: Laptop won`t connect via ethernet cable.

Yes, select Edit connections from the network menu and change the wired connection from DHCP  to static ip

But I would be concerned that there's still an underlying problem as it isn't getting an address via dhcp?

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

OK   thanks... I`ll  give that a try. and report back



Mr_Paul
Seasoned Pro
Posts: 719
Thanks: 231
Fixes: 12
Registered: ‎07-06-2022

Re: Laptop won`t connect via ethernet cable.

Just a thought, but have you tried running Mint in Live mode, (I think it is called?), where you boot from an installation DVD or USB drive, but don't click the "Install" icon on the "Live" desktop?

That might give a view on if your existing install has become corrupted.

I did that a few years ago when I had similarly baffling issues - Cinnamon is my desktop of choice though! 😀





shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

@Mr_Paul  Thanks for  your input... I have been using Mint for a long time... and never had this problem UNTIL I got this Toshiba Satellite Pro 12 inch, to replace a 10 inch laptop. ( which had no problems running mint or wired connection! )

I don`t think the install of mint is corrupted, as it was run from the same Live USB as for the main ASUS laptop.  Both installs were from a new download and done within 24 hours of each other.

MisterW has pointed at the driver, and from the linky he provided, it seems it`s been a bit of a problem with others.

@MisterW  I have done a MANUAL insert of the IP address

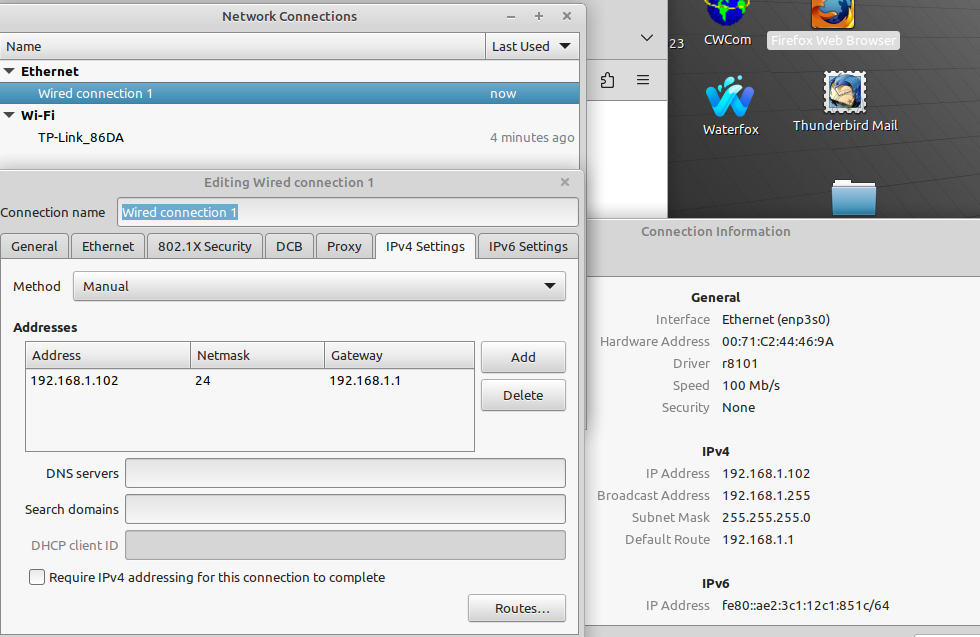

wired connection ip address.png



I put 255.255.255.0 in the Net Mask Column,....but it has changed to 24 for some reason! don`t know if I am doing the right thing.

Wondering about three things now.

1. The driver on the Toshiba ( with the problem) is showing as the "new" driver r8101  but the driver on the ASUS is showing  < iwlwifi >

2. in the above pic there is a small box at the bottom which says "Require IPV4 addressing for this connection to complete"

would this be the "something else" that you mentioned?   regarding not being found by DHCP.

3.  with the Manual insert the message showing on the icon as connected, is as follows

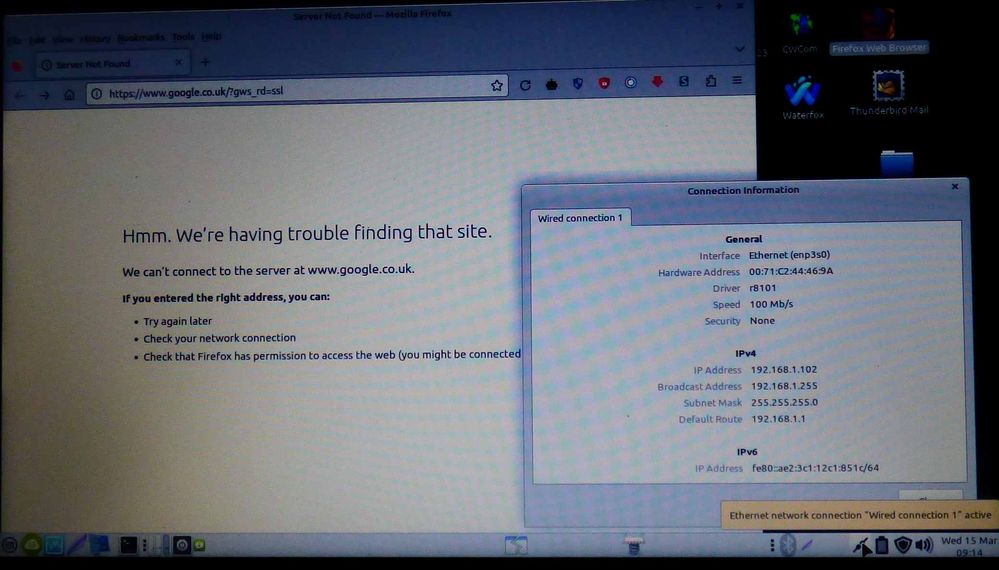

 wired connection active.jpg



But I get a message Server Not Found...when I try to search with Google.

Also.. despite the message saying it is Active.           ... If I click on the "bold type"   Wired Connection 1  in the listings  I get a quick flash of the "connected"  and then the "disconnected" mesages at top right corner of the screen...

so it appears that, although the "line" is "active".. there is still the problem of actually connecting to the internet via the router.

                                .

MisterW
Superuser
Superuser
Posts: 16,238
Thanks: 6,217
Fixes: 447
Registered: ‎30-07-2007

Re: Laptop won`t connect via ethernet cable.

Looks like neither the r8101 or the r8169 driver really like that nic.

I suspect you're stuck with just wireless on that laptop

Nb the iwlwifi you refer on the asus is for the wireless card not the wired one

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

Dan_the_Van
Hero
Posts: 3,095
Thanks: 1,526
Fixes: 90
Registered: ‎25-06-2007

Re: Laptop won`t connect via ethernet cable.

@shutter

You can not use the same IP Address as the wifi network it must be unique, try something else like 192.168.1.50 which is below the DHCP assignment range.

24 bit mask is 255.255.255.0

Dan



MisterW
Superuser
Superuser
Posts: 16,238
Thanks: 6,217
Fixes: 447
Registered: ‎30-07-2007

Re: Laptop won`t connect via ethernet cable.

@Dan_the_Van  good point. I had assumed that @shutter knew what he was doing with assigning static addresses

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

Mr_Paul
Seasoned Pro
Posts: 719
Thanks: 231
Fixes: 12
Registered: ‎07-06-2022

Re: Laptop won`t connect via ethernet cable.

Also, shouldn't the "Gateway" be 192.168.1.254 - ie the router's IP address? (It says 192.168.1.1 in that picture)



shutter
Community Veteran
Posts: 22,300
Thanks: 3,814
Fixes: 66
Registered: ‎06-11-2007

Re: Laptop won`t connect via ethernet cable.

@MisterW Hmm !... no... not really.  just trying to follow instructions.... and hope I don`t make mistakes along the way !.

@Dan_the_Van  Have deleted the previous address... and inserted 192.198.1.50   which remains RED also the 192.168.1.1 ( router) remains RED.. is this correct... or is it telling you (me) something else... as I can`t "Save" the entry (greyed out)

@Mr_Paul  Changed to .254  and still RED and still no "save"





Correction to above.... error on the 192.168.1.1 insert  (Missed out a dot ! ) now it is correct and showing GREEN

Also error in the first one... ( was two dot ! )  must get these glasses fixed



Connection/Disconnection problem as detailed in previous remains the same.
