21CN (Up to 16Mb)

WBC 160k - 288k160kbps to 288kbps
WBC 288k - 576k288kbps to 576kbps
WBC 576k - 1M576kbps to 1152kbps
WBC 1M - 2M1152kbps to 2272kbps
WBC 1M - 3M1472kbps to 3072kbps
WBC 2M - 4M2272kbps to 4544kbps
WBC 3M - 6M3328kbps to 6656kbps
WBC 4M - 9M4864kbps to 9728kbps
WBC 7M - 14M7168kbps to 14336kbps
WBC 160k - 24MUnbanded (up to 24576kbps)
 Above are the levels of banding that can be applied to your line by DLM (Dynamic Line Management). Banding is applied when your connection drops on a regular basis. The banding slows your connection by restricting your connection rate. For example, if your connection drops 10 times within 24 hours, you may notice that your connection is banded to WBC 4M-9M this means your connection will only be allowed to synchronise at a maximum of 9728Kbps. Your speeds are lowered to try and help your line stabilise.
Normally, your line should be WBC 160K-24M which essentially means, your connection can synchronise anywhere between 160Kbps up to 24576Kbps – this is a profile with no banding on it. In a lot of cases if you have a fault where your connection has dropped out, your profile will be restricted to WBC 160K-288K which means you’ll only see speeds of around 250Kbps.
If the INP value is either 4 or 8, this means the line is chronically banded – meaning that DLM will not be able to remove the banding on the line – it will need an SNR Reset (by an engineer or our Faults Team).

20CN (Up to 6Mb)

There is no line banding on 20CN circuits. The connection speeds are controlled by either increasing the SNR or by restricting the IP Profile. Please see the below table:
Sync speed (incr 32kb stages)IP profile
From To
160 kbps256 kbps135
288 kbps384 kbps250
416 kbps544 kbps350
576 kbps832 kbps500
864 kbps1120 kbps750
1152 kbps1408 kbps1000
1440 kbps1696 kbps1250
1728 kbps1984 kbps1500
2016 kbps2240 kbps1750
2272 kbps2816 kbps2000
2848 kbps3392 kbps2500
3424 kbps3968 kbps3000
4000 kbps4512 kbps3500
4544 kbps5088 kbps4000
5120 kbps5664 kbps4500
5696 kbps6208 kbps5000
6240 kbps6784 kbps5500
6816 kbps7360 kbps6000
7392 kbps7936 kbps6500
7968 kbps8096 kbps7000
8128 kbps8128 kbps7150
The above table shows the IP Profile’s that are available based on your synchronisation rate. For example, if you have a synchronisation rate of 4500, you will be assigned an IP Profile of 3500 – this equates to around 3.4Mbps.

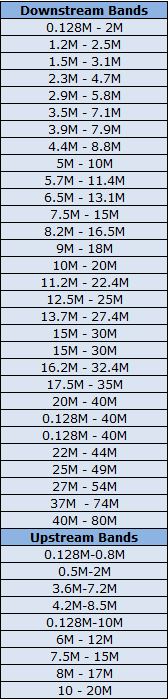

FTTC (Up to 76Mb)

More, in depth information on how these figures are used in our own internal testing can be found on the Faults Testing guide.
