Random Wi-Fi Disconnects Now Permanent

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

Hi,

When you say "Currently only able to connect to extender" is this just your HP laptop or everything?

If it's just your laptop do you still see the Hub One wireless name PLUSNET-JM8H or just PLUSNET-JM8H_EXT using the WiFi scanner?

I'm wondering if the Hub One event log will reveal what is happening, it is found by navigating from

Home >Troubleshooting >Event Log. Try to capture the events for category WiFi for the time period you lost wireless connection.

You should be able to copy/paste the text into notepad, then attached the saved notepad file.



Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Morning Dan and thank you again.



Yes it's the laptopn that is having issues. All other devices connect to PLUSNET-JM8H with no problems.



Both PLUSNET-JM8H and PLUSNET-JM8H_EXT always appear in the list. it is only when it comes to connecting that PLUSNET-JM8H comes up with 'Unable to connect to this network' with a close button. PLUSNET-JM8H_EXT is connected at the moment but now and again comes up with 'Connected, no internet' with a disconnect button.



I've turned the laptop on this morning at approximately 09:28 and connected to PLUSNET-JM8H_EXT.



I've attached the event log from the first page beginning at 07:23. Just give a shout if you any going back further. I've also attached the current screen from the analyzer.



Terry

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

Morning,

From what you say when your laptop when connected to  _EXT is works as expected. Are you closer to the TP-Link or Hub One device?

Looking at the log it shows multiple connection drops and reconnects for what I assume is your laptop with a hostname ennyoueffsea when attempting to connect to the Hub?

My thinking it is likely while the connection is not established to the Hub it is reporting 'no internet'

Have you tries forgetting either of the wireless names to see if that helps to hold the connection?



On the TP-Link TL-WA850RE do you know which version it is, how many clients are connected and which mode are you using 'Access Point' or 'Range Extender'?









Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Hi Dan



I've come back on a few minutes ago and it was connected to _EXT and then tried to connect to the router and it worked first time. I've attached the latest event log and can see a lot of 'Lease requested' related to Chromecast that we have on the upstairs tv. Is it worth disconnecting that? To be honest it wouldn't be missed as has not been used for about 2 years.



To answer your questions posed:



The router is closer than the extender but is upstairs opposed to the extender being in the kitchen.



Yes, you're right in assuming that ennyoueffsea is the laptop.



I have tried forgetting both of the wireless names a few times but doesn't make any difference.



On the TP-Link TL-WA850RE the only information for the version is it's 300Mbps showing no clients and is set to Range Extender Mode.

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

Evening,

Looking  carefully at the log file I see the chromecast flipping between the two wireless bands ath00 (2.4 GHz) and ath01 (5 GHz). If it's not used I'd turn it off.

This is an old problem with the hub with devices flipping between channels, the current firmware version 4.7.5.1.83.8.289.1.3 is yours this or something else, the version number can be seen at the bottom of the Home page of the Hub.

As an experiment are you happy to turn off 5 GHz band? From the hubs home page navigate to

>Advanced settings >Wireless select 5GHz Wireless and set Wireless network enabled to No, everything will now just use 2.4GHz

Maybe also turn off the TL-WA850RE to stop your laptop being tempted to connect to it.

Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Hi Dan



Sorry for the delay, had to get partner to doctors appointment.



I've unplugged the Chromecast and the TL-WA850RE.



I then went in and disabled the 5GHz band and this caused me to go offline (was connected to router) and the applying button just kept spinning. Had a check on the router and the wireless light was orange.



Laptop will now not connect to router, just giving the 'Unable to connect to this network' message.



When trying to log into the router the page will not respond on the laptop so turned laptop off.



I am now connected via iPhone as still unable to connect to router. I have taken another screenshot of the wifi analyzer and also logged into router on iPhone and it confirms the 5GHz has been disabled, also managed to copy off last 3 pages of the event log. (have attached both).



Terry



Terry

Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Hi again Dan



Was just browsing through some of the topics and came across this one HP computer won't find network but other devices d... - Plusnet Community and saw an ipconfig /all was requested.



Just ran on this and wondered if this is of any use.



indows PowerShell
Copyright (C) Microsoft Corporation. All rights reserved.

Install the latest PowerShell for new features and improvements! https://aka.ms/PSWindows

PS C:\Users\ennyo> ipconfig /all

Windows IP Configuration

Host Name . . . . . . . . . . . . : ennyoueffsea
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No

Wireless LAN adapter Local Area Connection* 1:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter
Physical Address. . . . . . . . . : 2E-3B-70-65-2D-D9
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter WiFi:

Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Realtek RTL8821CE 802.11ac PCIe Adapter
Physical Address. . . . . . . . . : 2C-3B-70-65-2D-D9
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::bcaa:d456:6630:1e5c%16(Preferred)
IPv4 Address. . . . . . . . . . . : 172.20.10.3(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.240
Lease Obtained. . . . . . . . . . : 21 November 2024 19:09:42
Lease Expires . . . . . . . . . . : 22 November 2024 21:19:12
Default Gateway . . . . . . . . . : 172.20.10.1
DHCP Server . . . . . . . . . . . : 172.20.10.1
DHCPv6 IAID . . . . . . . . . . . : 187448176
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-2C-4C-4A-F0-2C-3B-70-65-2D-D9
DNS Servers . . . . . . . . . . . : 172.20.10.1
NetBIOS over Tcpip. . . . . . . . : Enabled

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

@Ennyoueffsea

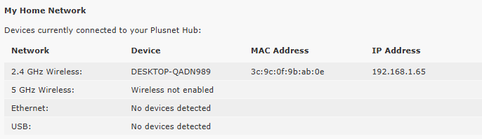

Is the wireless still turned off? Provided you only switch off 5GHz then 2.4GHz should still be present, with no wireless from the Hub then the TP-Link extender will not work either. The home page should look something like

Screenshot 2024-11-22 081623.png

I only have one device connected.

If you have a wired PC with a browser then you can connect using that and connect to the Hub , but if all your devices with browsers are wireless and there is still no wireless then you'll have to reset the Hub using the reset hole on the back, using a paperclip you need to push the hidden switch in until the light goes green (about 25 seconds)

IPCONFIG (which I referred to in an earlier post of mine)  should be used when connected to the Hub was your example?

The topic you have referenced,  was the conclusion I was thinking as mentioned in the last post.

Townman
Superuser
Superuser
Posts: 24,043
Thanks: 10,215
Fixes: 176
Registered: ‎22-08-2007

Re: Random Wi-Fi Disconnects Now Permanent

@Ennyoueffsea

That ipconfig report shows that the device has not been allocated a DHCP network address. I have seen this before - WiFi card appears to connect to the SSID (device reports connected but no internet) but does not get an IP address allocated. In such situations the device generates its own IP address.

I will look at the problem device and see if it has the same WiFi NIC as yours.

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

@Townman

That ipconfig example shows 172.20.10.1 as being the DHCP server, hence my question in my last post

IPCONFIG (which I referred to in an earlier post of mine)  should be used when connected to the Hub was your example?

Where a network adapter does not find a DHCP server ipconfig /all would look like



Ethernet adapter Ethernet 2:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : ASIX USB to Gigabit Ethernet Family Adapter
   Physical Address. . . . . . . . . : F8-E4-3B-83-5D-10
   DHCP Enabled. . . . . . . . . . . : Yes
   Autoconfiguration Enabled . . . . : Yes
   Autoconfiguration IPv4 Address. . : 169.254.254.147(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.0.0
   Default Gateway . . . . . . . . . :
   NetBIOS over Tcpip. . . . . . . . : Enabled

Hope I understood your post correctly







Townman
Superuser
Superuser
Posts: 24,043
Thanks: 10,215
Fixes: 176
Registered: ‎22-08-2007

Re: Random Wi-Fi Disconnects Now Permanent

Hi Dan,

You did - looking at this thread of the phone, I mistook the A.x.x.x address as the self allocated range, as opposed to the usual 192.168.1.x of a PN hub.

Cheers!!

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

Townman
Superuser
Superuser
Posts: 24,043
Thanks: 10,215
Fixes: 176
Registered: ‎22-08-2007

Re: Random Wi-Fi Disconnects Now Permanent


@Ennyoueffsea wrote:



Since last week the Wi-Fi connection has randomly dropped and would come back after a few minutes. However it has dropped off and will not reconnect.

I've been using this laptop for about 15 months with no issues.

Terry, in that case, something has...

  • become broken
  • been introduced which is causing an issue
  • been changed in some subtle manner

I note that IP address in the ipconfig report is not in the usual default range for a PN hub.  Is there a reason for that?

Can you confirm the context of that report - connected to the extender or attempted connection to the router?

Can you confirm the precise detail of the failure - does it indicate clearly that it cannot connect to the WiFi SSID or does it infer no network connectivity?

Comparative ipconfig reports when connected to the extender / attempted connection to the router would be helpful.

Superusers are not staff, but they do have a direct line of communication into the business in order to raise issues, concerns and feedback from the community.

Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Hi Dan & @Townman



Sorry if I've caused confusion with that ipconfig. After disabling the 5GHz band I had mentioned in the previous post that I had been unable to connect to the router and getting the 'Unable to connect to this network' so had connected via the iPhone. I guess this may have caused the 172.20.10.1 as being the DHCP server.



I re-enabled the 5GHZ band late on last night and when I have come on this afternoon the laptop has connected to the router first time and when I checked the router homepage the laptop was the only device that had connected to the 5GHz band. Partner has just connected her Mac book and looks to have joined me on 5GHz, though she has had no issues at all in connecting over this period.



The TL-WA850RE is still unplugged at present.



Townman, Although I have connected to the router ok this afternoon, last night I was constantly getting the 'Unable to connect to this network' message with a close button. The extender, which is currently off just occasionally has come up with the message 'Connected, no internet' with a disconnect button.



Here is an ipconfig which is current.



PS C:\Users\ennyo> ipconfig /all

Windows IP Configuration

Host Name . . . . . . . . . . . . : ennyoueffsea
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : lan

Wireless LAN adapter Local Area Connection* 1:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter
Physical Address. . . . . . . . . : 2E-3B-70-65-2D-D9
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter Local Area Connection* 2:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft Wi-Fi Direct Virtual Adapter #2
Physical Address. . . . . . . . . : AE-3B-70-65-2D-D9
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes

Wireless LAN adapter WiFi:

Connection-specific DNS Suffix . : lan
Description . . . . . . . . . . . : Realtek RTL8821CE 802.11ac PCIe Adapter
Physical Address. . . . . . . . . : 2C-3B-70-65-2D-D9
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::bcaa:d456:6630:1e5c%16(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.71(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : 22 November 2024 14:16:08
Lease Expires . . . . . . . . . . : 23 November 2024 14:16:08
Default Gateway . . . . . . . . . : 192.168.1.254
DHCP Server . . . . . . . . . . . : 192.168.1.254
DHCPv6 IAID . . . . . . . . . . . : 187448176
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-2C-4C-4A-F0-2C-3B-70-65-2D-D9
DNS Servers . . . . . . . . . . . : 192.168.1.254
NetBIOS over Tcpip. . . . . . . . : Enabled

Ethernet adapter Bluetooth Network Connection:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Bluetooth Device (Personal Area Network)
Physical Address. . . . . . . . . : 2C-3B-70-65-2D-D8
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes



If there's anything I've missed, please feel free to shout at me. 😉

Dan_the_Van
Hero
Posts: 3,129
Thanks: 1,560
Fixes: 90
Registered: ‎25-06-2007

Re: Random Wi-Fi Disconnects Now Permanent

@Ennyoueffsea

Thought I'd give it a couple of days, how's things behaving since you turned off the wireless extender?



Tags (2)
Ennyoueffsea
Dabbler
Posts: 20
Thanks: 1
Registered: 4 weeks ago

Re: Random Wi-Fi Disconnects Now Permanent

Hi Dan



Thanks for checking in.



I was online twice yesterday for short periods and laptop connected without any issues on both occasions.



Turned on this afternoon, again for a short time and connected fine. Have just come back on in the last few minutes and connected again with no problems.



I have left the extender unplugged for a few days now. Is it likely that the extender may have caused this, and is it best to just try getting by without?



Will see how the next couple of day and see how things go, but it does look encouraging.



Many thanks to you and @Townman for your patience.



Terry



Just tried disconnecting from router, then clicked on connect and held my breath. And it has again connected, so looking good so far.
