BT Business Smart Hub 6 Type A anf FTTP

My Router has BTBHub6-3SRH   on the plastic removable tab/flap and on the rear  BT Smart Business Hub - Type A

My Router Home Page it shows Fibre Broadband (VDSL} which is Fiber to the cabinet, Openreach say its coming 2026 to my area/private road. However some other provider had Fibre connections/boxes in the old Telephone  cabinets in the ground along the pathway that runs from public road/street down our short 70-80m private road. Openreach does not have anything in the boxes. There is only only 80Mb Max FFTC to our properties.

Will i be able to use my above router for FTTP (premises) when it arrives?



My other (spare/backup) router Smart Hub 6 also Type A but not a Business has 4 yellow ethernet ports but no RED WAN port.







17 REPLIES 17
Baldrick1
Moderator
Moderator
Posts: 12,246
Thanks: 5,441
Fixes: 428
Registered: ‎30-06-2016

Re: BT Business Smart Hub 6 Type A anf FTTP

@Empire

The only Smarthub 6 versions that will work on FTTP have a red WAN label stuck over one over one of the LAN sockets.

Moderator and Customer
If this helped - select the Thumb
If it fixed it,  help others - select 'This Fixed My Problem'

Baldrick1
Moderator
Moderator
Posts: 12,246
Thanks: 5,441
Fixes: 428
Registered: ‎30-06-2016

Re: BT Business Smart Hub 6 Type A anf FTTP

@Empire

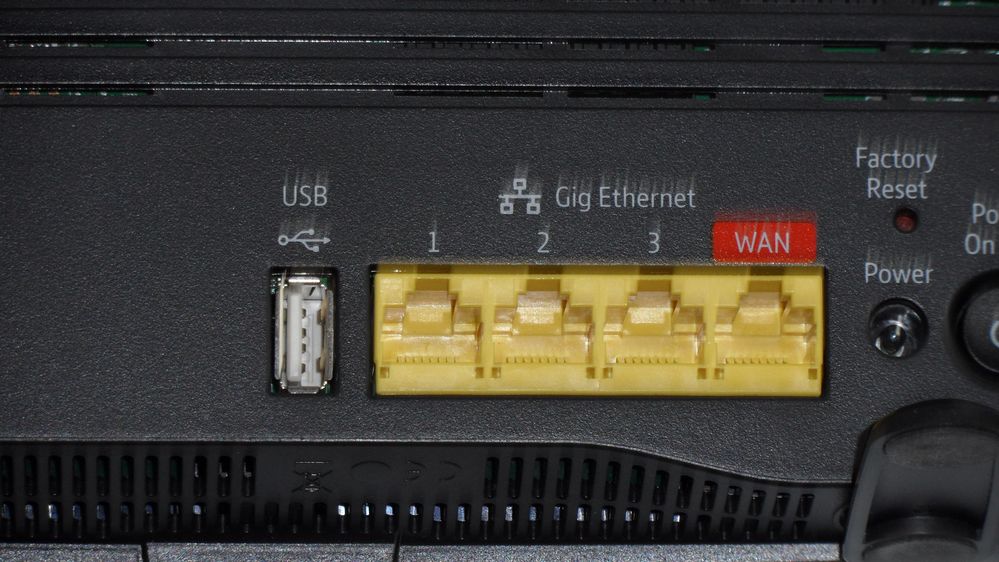

Rear of a Business FTTP Smarthub 6.These also work on FTTC via the DSL input. This is the same as a Plusnet Hub 2 is arranged to work.


Moderator and Customer
If this helped - select the Thumb
If it fixed it,  help others - select 'This Fixed My Problem'

Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

Thanks Baldrick,  i did attach a pic showing the 4 yellow ports in a row .  3 Yellow ethernet ports and  one yellow port with a Red  WAN sticker above/top of the port.



Any idea how powerfull these Smart Hub 6 are  compared to newer routers like TP or Fritbox etc, are they still okish with a bit of life left, or really now behind,

i am unable to really evaluate,  but mine is very reliable and  provideswith good transfer speed between Router and Laptop Intel AC-9260 card which is ok.

Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

Yes thats like mine i did attach a piccy showing similar.

Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

I assume the DSL input is the yellow 4th port  with the RED WAN sticker above

jab1
Legend
Posts: 18,659
Thanks: 6,075
Fixes: 281
Registered: ‎24-02-2012

Re: BT Business Smart Hub 6 Type A anf FTTP

No, the DSL port is separate, a different colour and a different shape, and labelled 'DSL'.

John
Baldrick1
Moderator
Moderator
Posts: 12,246
Thanks: 5,441
Fixes: 428
Registered: ‎30-06-2016

Re: BT Business Smart Hub 6 Type A anf FTTP

@Empire

The DSL input is the one on the left in your picture (sorry, I had missed that) labelled Broadband. It looks like you are currently using it.

With the move to Full Fibre you remove this connection and instead fit an Ethernet cable between the WAN socket and the new Full Fibre ONT.

In terms of performance it depends on what you need. Others have far more bells and whistles features and probably faster wireless speeds. You pays your money  etc...

Moderator and Customer
If this helped - select the Thumb
If it fixed it,  help others - select 'This Fixed My Problem'

Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

Sorry to sound so thick

my Hub 6 does not have DSL input anywheres, do you mean the light grey/off white Broadband socket telephone cord on the router.   My Router is plugged in there and goes to the OpenReach MK4  Master Socket 5C on the lounge wall

Baldrick1
Moderator
Moderator
Posts: 12,246
Thanks: 5,441
Fixes: 428
Registered: ‎30-06-2016

Re: BT Business Smart Hub 6 Type A anf FTTP

@Empire

Our posts have crossed.

Moderator and Customer
If this helped - select the Thumb
If it fixed it,  help others - select 'This Fixed My Problem'

jab1
Legend
Posts: 18,659
Thanks: 6,075
Fixes: 281
Registered: ‎24-02-2012

Re: BT Business Smart Hub 6 Type A anf FTTP

@Baldrick1  - and you beat me with the answer.😀

John
Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

sorry youre too quick for me, i was typing slowly when your reply/answer came. so my DSL input is the light grey socket market broadband on my router.



I thought if i had FTTP with that (black plastic box)  my router would use an ethernet cable (i think) from the Red sticker WAN port to a socket/port on the the new FTTP black box.



I have i got this right?

jab1
Legend
Posts: 18,659
Thanks: 6,075
Fixes: 281
Registered: ‎24-02-2012

Re: BT Business Smart Hub 6 Type A anf FTTP

@Empire If you have/had FTTP, OpenReach install a completely new ONT (Optical Network Termination), and you connect your router to that via an Ethernet cable, i.e. ONT>RED port on the Hub6.

BTW - OR installed ONTs are white, not black.

John
Empire
Grafter
Posts: 68
Thanks: 1
Registered: ‎07-12-2020

Re: BT Business Smart Hub 6 Type A anf FTTP

..........as i thought but was not certain.   However by the time it reaches my road 2026 the router will be getting long in the tooth,  and possibly not great at  higher speeds, not that i really it now,  my BB is reasonably fast i guess 60-65Mb ish on average, it varies throughout the day.

jab1
Legend
Posts: 18,659
Thanks: 6,075
Fixes: 281
Registered: ‎24-02-2012

Re: BT Business Smart Hub 6 Type A anf FTTP

No doubt by that time, there will be newer routers, and as you would be changing product, and if you were still with PN, you would most likely be offered the latest router.

John
