Broadband Phone Software/Hardware Setup

« on 22/11/2007, 15:41 »
Afternoon all,

To support the recently announced Broadband Phone Beta Trials, I thought I'd set up a sticky post to collect examples of software/hardware configurations that are known to work with the service. This should put us in a good position to update our support content when we're ready to fully deploy the platform.

Please post screen-grabs where appropriate and remember to include the name of the software/hardware you are using and the software/firmware version.

**UPDATE 24/07/2009**

Please now consider adding your set-up guides to our Support Library instead of this thread.

[Moderator's note by Adie (Adiewoo) title changed from VoIP Beta Trial Hardware/Software set-up]

« Last Edit: 24/07/2009, 16:08 by Bob Pullen »

Bob Pullen
Plusnet Comms Team
Service Status :: RSS :: Email
twitter / plusnet
Logged
« Reply #1 on 22/11/2007, 15:52 »
Seeing as we'll not be migrating any customers across until next week, I'll start the ball rolling...

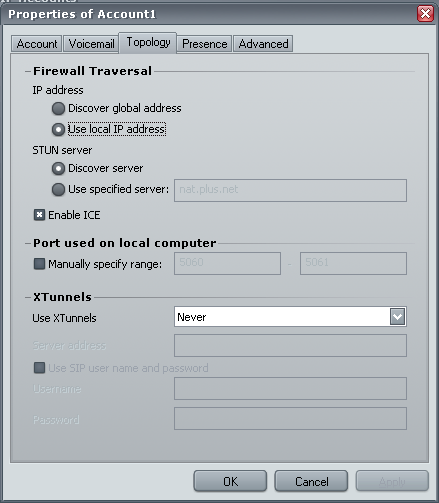

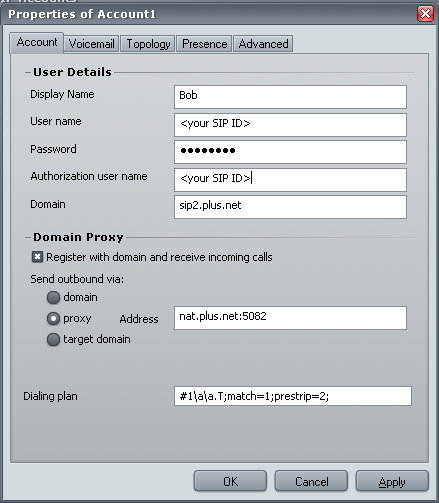

X-Lite Version 3 build 41150: (Windows)


Bob Pullen
Plusnet Comms Team
Service Status :: RSS :: Email
twitter / plusnet
Logged
« Reply #2 on 26/11/2007, 18:39 »
This is my configuration on a DrayTek 2600v

Firmware Version: v2.5.8.3_UK2

HTH

Jeff

* VoipBetaDrayTek.JPG (67.4 KB, 706x583 - viewed 621 times.)
PlusNet Joined 03/08/2001
Logged
« Reply #3 on 26/11/2007, 19:09 »
I have configured X-lite as per the VOIP Beta trial instructions and can make O/G calls to UK landlines OK. If I call the regional phone number the call setup is successful but the transmission is I/C only with the calling number unable to hear. I tried Bobs config but then nothing works. I have disabled Vista firewall and (with help) tried a variety of settings on my Netgear router. Router is DG834N with latest software. Any thoughts please  Huh?

Took advice about reverting to x-lite 2 and my transmission problems solved! Grin

« Last Edit: 29/11/2007, 18:44 by kelvinsmith »


* netgear 1.jpg (514.46 KB, 1165x907 - viewed 570 times.)

* netgear 2.jpg (399.54 KB, 1165x907 - viewed 424 times.)
Logged
« Reply #4 on 27/11/2007, 00:24 »
Configuring the Speedtouch 716 v5 WL was fairly straightforward.  I had to leave Registrar Port set to 5060, as it had been on the old system, and I didn't see that documented anywhere.

So that was quite pleasing.

I tried to upload screen grabs as attachements but got timed out (as usual).

When you have all finished playing with your shiney new VOIP toy, perhaps somebody could tell me why I still get timeouts when doing FTP to my webspace (reported elsewhere).  It's my guess that Free-Online customers arrive at your site through their former connection and then get re-routed to PlusNet through a very slow interconnect that is not up to it. (But that is just a guess).

Peter
Logged
« Reply #5 on 27/11/2007, 12:50 »
If anyone else is trying to use SJ Phone is quite helpful as we are using their product!

Edit: shortened URL

« Last Edit: 27/11/2007, 15:33 by Bob »

Logged
« Reply #6 on 27/11/2007, 16:42 »
We have just figured out an interesting thing about the problem on Xlite, whereby there is no outbound audio on inbound non sip calls. If you press and unpress the 'hold' button in the software, two way audio is restored and the rest of the call is fine.  Roll Eyes

I have been able to replicate this in X-lite, but it's not a problem that occurs in any of the other clients or hardware phones I have tried today. As such, it looks like it may be a very odd bug, and I think it's more likely to be an issue with X-lite then it is with the new Voip service.

So far the best word we have found to describe this is: Random. If anyone has any ideas, we'd love to hear them!

We just enabled another 100 people onto the trial by the way, and all those luckly people will be given 50p credit gratis!

Ian

« Last Edit: 27/11/2007, 17:11 by Ian Wild »

Logged
  • dave
  • Plusnet Staff
  • *
  • Posts: 10572
  • View Profile
« Reply #7 on 27/11/2007, 17:16 »
Does look like X-lite, there's a similar thread over on the X-lite support forum here from someone using Sipgate.
Regards,
Dave Tomlinson
PlusNet Network Transformation
Logged
« Reply #8 on 27/11/2007, 17:45 »
An update from Gradwell re: audio issues

"we believe this issue is with the xlite software. It appears that the latest version release has actually broken a number of things.

I am performing some investigations for you, and will keep this ticket open. In the mean time, I would suggest using an older version of xlite."

My suggestion is to go to this link and download v2 (older version) of xlite - worked first time for me

http://www.voipuser.org/forum_topic_6405.html
Kind regards, Rich Smolenski
Plusnet Products Team
Logged
« Reply #9 on 27/11/2007, 18:27 »
Anybody got any settings for an asterisk (trixbox) server?
Cheers,

Darren
Logged
« Reply #10 on 27/11/2007, 18:37 »
Speedtouch 716wl settings no problems.
Firmwear    5.4.0.11

AND 0.50p CREDIT

Ian

« Last Edit: 27/11/2007, 19:15 by ian007jen »


* speeedysettings.jpg (54.74 KB, 811x614 - viewed 513 times.)
Logged
« Reply #11 on 27/11/2007, 20:06 »
Got my E65 working with the new plustalk service brilliant have been waiting to get this setup woking fo ages well done
Logged
« Reply #12 on 27/11/2007, 20:36 »
Grandstream Budgetone 100 - All ok Smiley

Product Model: BT100 REV 2.0
Software Version: Program-- 1.0.8.33 Bootloader-- 1.1.0.1 HTML-- 1.0.8.33 VOC-- 1.0.1.0

Full config posted as not sure what the defaults were! Also, phone has static IP with gateway and DNS pointing to router with no firewall modifications needed.

* GrandStream Config.jpg (301.76 KB, 802x2320 - viewed 482 times.)
Logged
« Reply #13 on 27/11/2007, 20:37 »
Hello

Trying to set up my Siemens S450IP phones and falling at the first hurdle.

To get it to work on the old PlusNet phone system you had to use the server IP address and Proxy IP address does anyone have them?  I have tried reverse lookup but they don't seem to work

Thanks
Logged
« Reply #14 on 27/11/2007, 20:45 »
jimmyl... Try

Name:    sip2.plus.net
Address:  193.111.200.56

Name:    nat.plus.net
Address:  194.165.60.134
Logged
  • dgp
  • Posts: 69
  • View Profile
« Reply #15 on 27/11/2007, 20:49 »
I have a PAP2 and all I needed to do was change the SIP ID, password and server and it worked straight away, which caught me by surprise.

Added bonus is that I can now dial in to my BT Meetme account for tele-conferences, the old Plusnet system wouldn't let you do it.

So well done (so far!!!).
Logged
